PRODUCT OVERVIEW

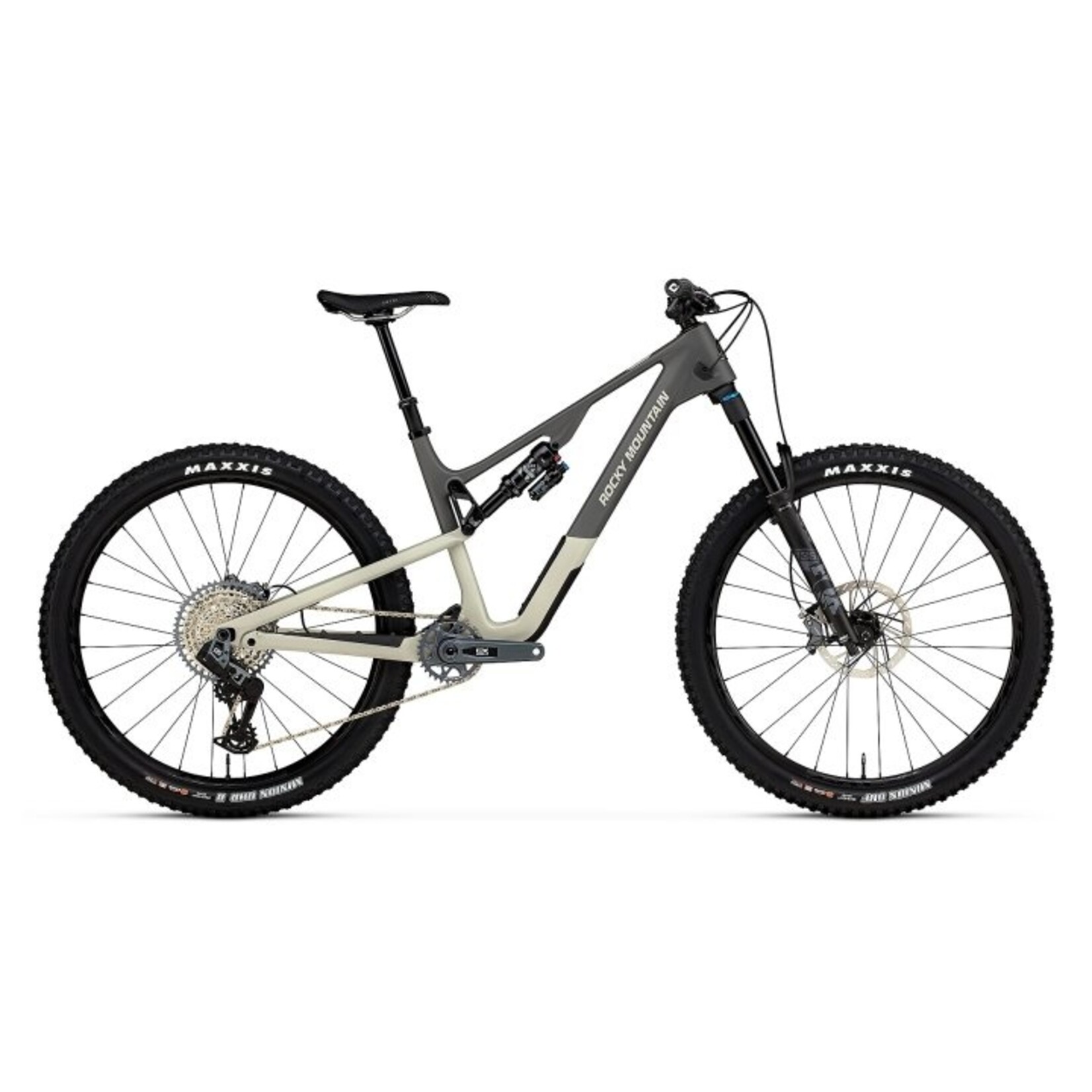

In search of a quiver-killer? we’ve got you covered with the Instinct AlloyCarbon. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the Instinct Alloy frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
Features
RIDE-4™ adjustment system
The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.
Reach adjust headsets
Fine tune your ride with center, +/- 5mm offset options.
PenaltyBox™ 2.0
The new PenaltyBox™ 2.0 downtube storage (carbon models only) includes generous capacity, custom tool wrap and our rock-solid hinged door system that doubles down as a water bottle mount and built-in concealed AirTag/Tile compartment.
Size Specific Tune
Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real world field testing, and adjusts each tune for specific frame sizes.
Two-position axle
The two-position axle allows the rider to choose a short or long rear-center length that suits their personal preferences.
SMOOTHWALL™ Carbon
Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.
SPECIFICATIONS
- Frame: SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle
- Fork:RockShox Lyrik Select+ 150mm | Charger RC3 Damper | 27.5 = 37mm Offset | 29 = 42mm Offset
- Front Travel:150
- Rear Shock:RockShox Super Deluxe Ultimate | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
- Rear Travel:140
- Headset:FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
- Stem:Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm
- Handelbar:Rocky Mountain AM Carbon 780mm
- Grips:ODI Elite Pro Lock On
- Brakes:Sram G2 RSC 4 Piston | Resin Pads
- Shifters:Sram AXS Pod Wireless Controller
- Rear Derailleur:Sram X01 Eagle AXS Wireless
- Cranks & Chainring:Sram X0 Transmission Alloy | 32T | DUB Spindle | Crankarm Length: XS -SM = 165mm | MD - XL = 170mm
- Bottom Bracket:Sram BB92 DUB Wide
- Cassette:Sram XG-1275 10-52T
- Chain:Sram GX Eagle
- Front Hub:Rocky Mountain SL Sealed Boost 15mm
- Rear Hub:DT Swiss 370 Boost 148mm | 18T Star-Ratchet
- Spokes:DT Swiss Competition 2.0/1.8/2.0
- Rims:Rocky Mountain 30AM Carbon / Tubeless Ready - Tape / Valves Incl
- Tires:F: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready
- Seatpost:OneUp Dropper 30.9mm | XS = 120mm | SM = 150mm | MD = 180mm | LG - XL = 210mm
- Saddle:WTB Volt Race 142
-
