PRODUCT OVERVIEW

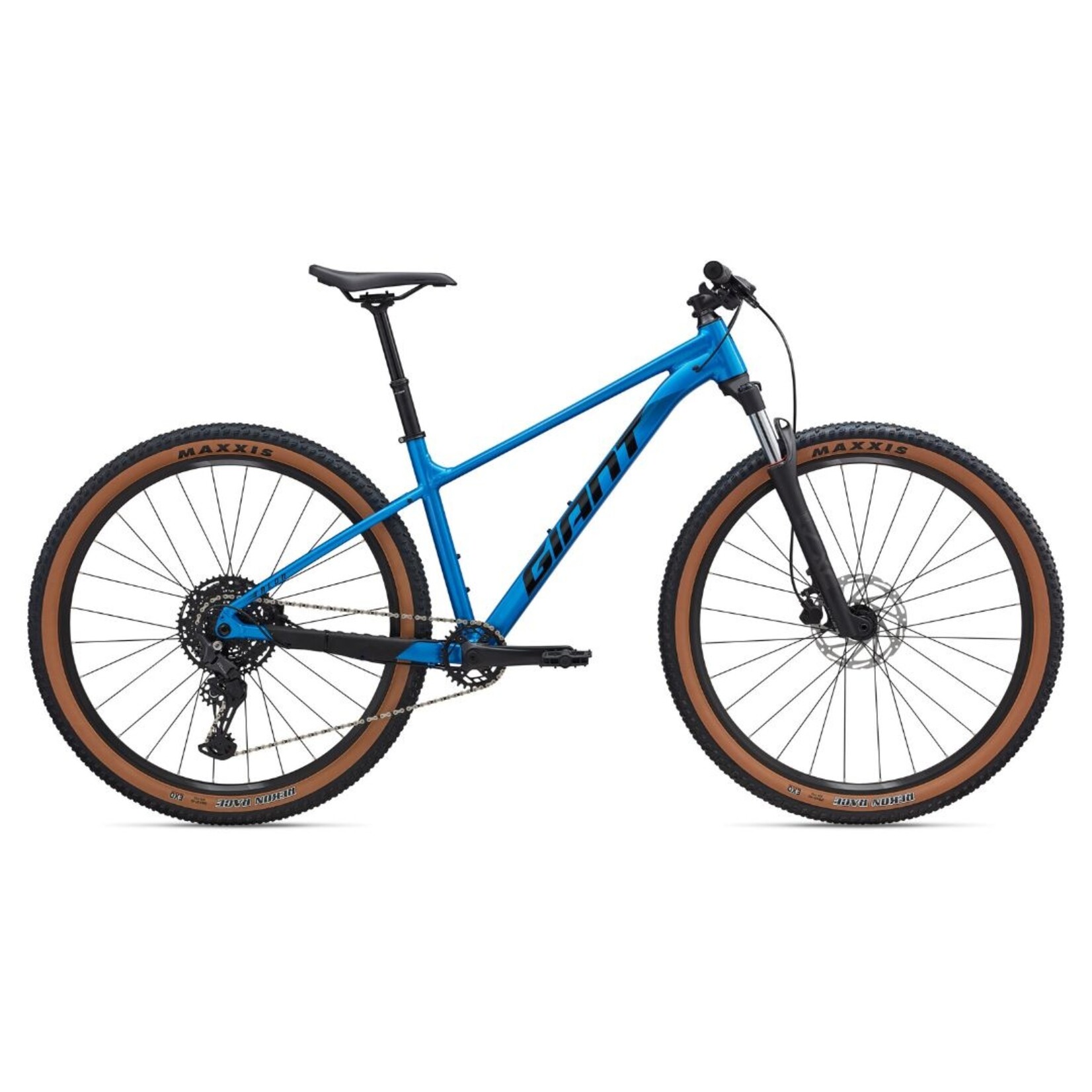

The mountain bike experience starts here. With a redesigned frame that's now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1X drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. ***NOT AVAILABLE TO SHIP. LOCAL PICK UP ONLY***
Features
- Modern MTB Design - Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
- Off-Road Control - New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
- Light and Durable - All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
SPECIFICATIONS
-
Frame: ALUXX-grade aluminum, disc
-
Fork: Giant SXC32-3 RL, coil spring, 1.5" tapered alloy steerer, 15x110mm thru-axle, XS,S: 80mm (27.5), S, M, L, XL: 100mm (29)
-
Shock: N/A
-
Handlebar: Giant Connect Trail, 31.8mm
-
Grips: Giant Sole-O
-
Stem: Giant Sport, 7-degree
-
Seatpost: Giant Contact Switch Core dropper, remote, XS, S: 100 travel / 30.9 x 350mm, M-XL: 120 travel / 30.9 x 400mm
-
Saddle: Giant ErgoContact Trail
-
Pedals: platform
-
Shifters: Shimano CUES U6000, 1x10
-
Front Derailleur: N/A
-
Rear Derailleur: Shimano CUES RD-U6000, clutch
-
Brakes: Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
-
Brake Levers: Tektro HDC M275
-
Cassette: Shimano CUES, LinkGlide, 10-speed, 11x48
-
Chain: KMC X11
-
Crankset: ProWheel Charm, [27.5] 32t, [29] 30t, 52.5mm chainline 32t
-
Bottom Bracket: cartridge
-
Rims: Giant GX03V 27.5 or 29, alloy, double wall, 21mm IW
-
Hubs: alloy, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle
-
Spokes: stainless
-
Tires: Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", 60 TPI, wire bead
-
Extras: 2.4" max tire size, max chainring 32t
