PRODUCT OVERVIEW

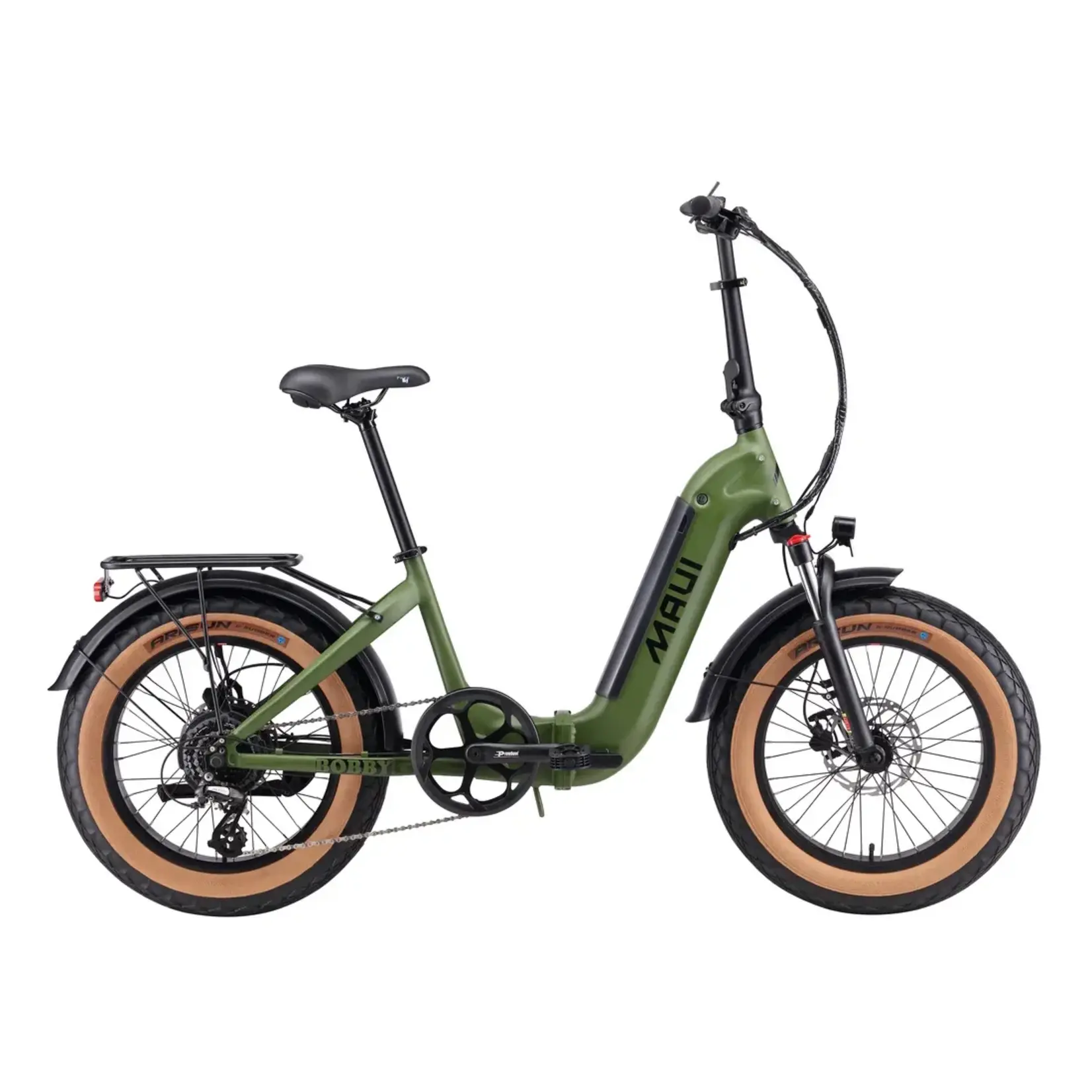

The BOBBY: Maui Bikes’ exciting new creation! For 2025, this model features a sophisticated torque sensor that analyzes pedal pressure for perfectly adapted motor assistance with remarkable smoothness. This folding step-through bike combines a powerful 500W Bafang motor and quality Samsung battery, complemented by precise hydraulic brakes. Versatile by design, the BOBBY excels in both urban and trail settings thanks to its front suspension, wide 100 mm tires, and practical fenders — the ideal balance between performance and riding pleasure!

SPECIFICATIONS

Frameset

• FRAME: Alloy 27.5" step through frame with smooth welding. Integrated rear rack, fender mounts, Electronic Access Port. Removable battery with security lock.

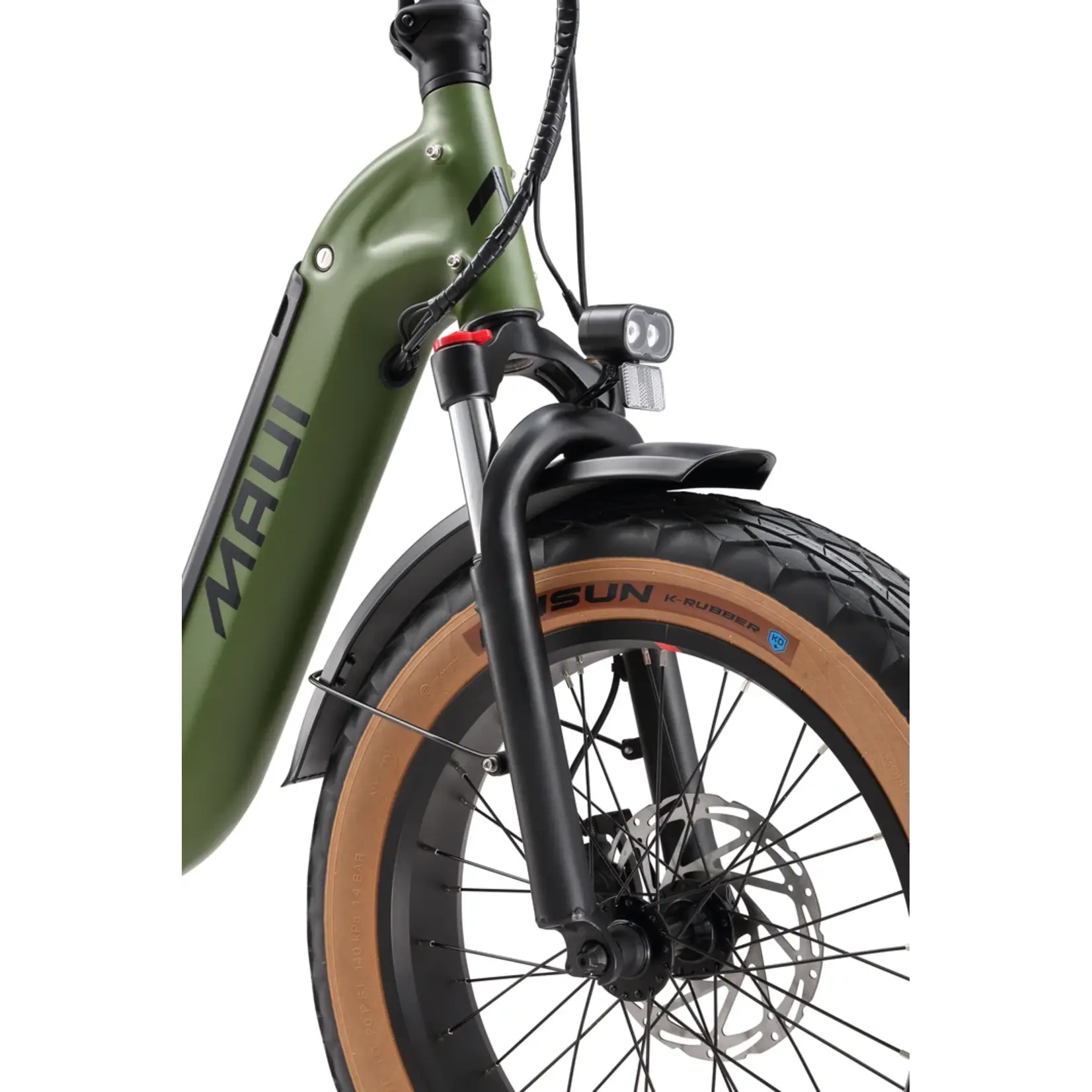

• FORK: Alloy suspension fork, with hydraulic lock
• BIKE WEIGHT: 31kg
• WEIGHT CAPACITY: 135kg

Drivetrain

• SHIFTERS: SHIMANO 8-speed rapidfire

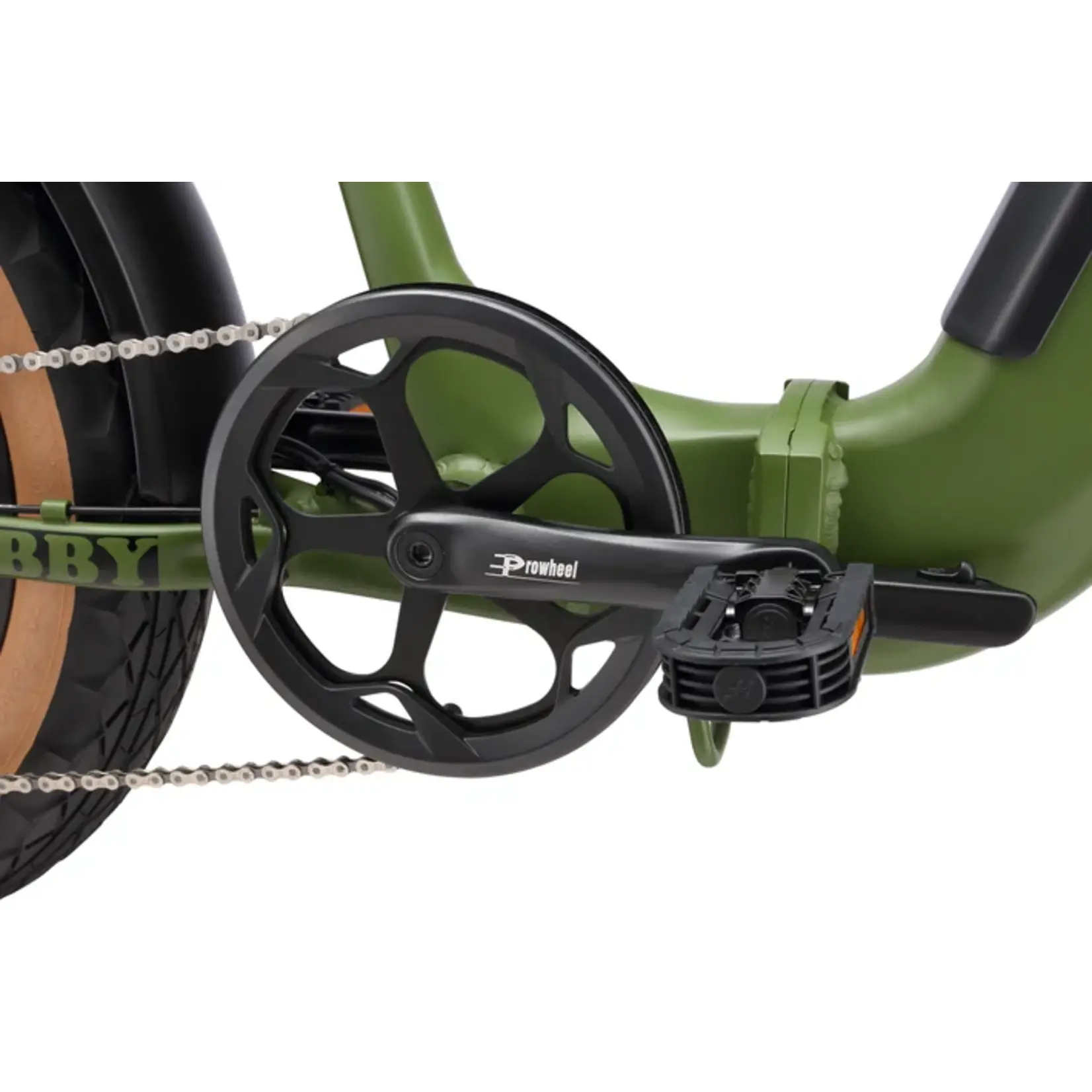

• CRANK SET: PROWHEEL, 46T
• CHAIN: KMC Z7

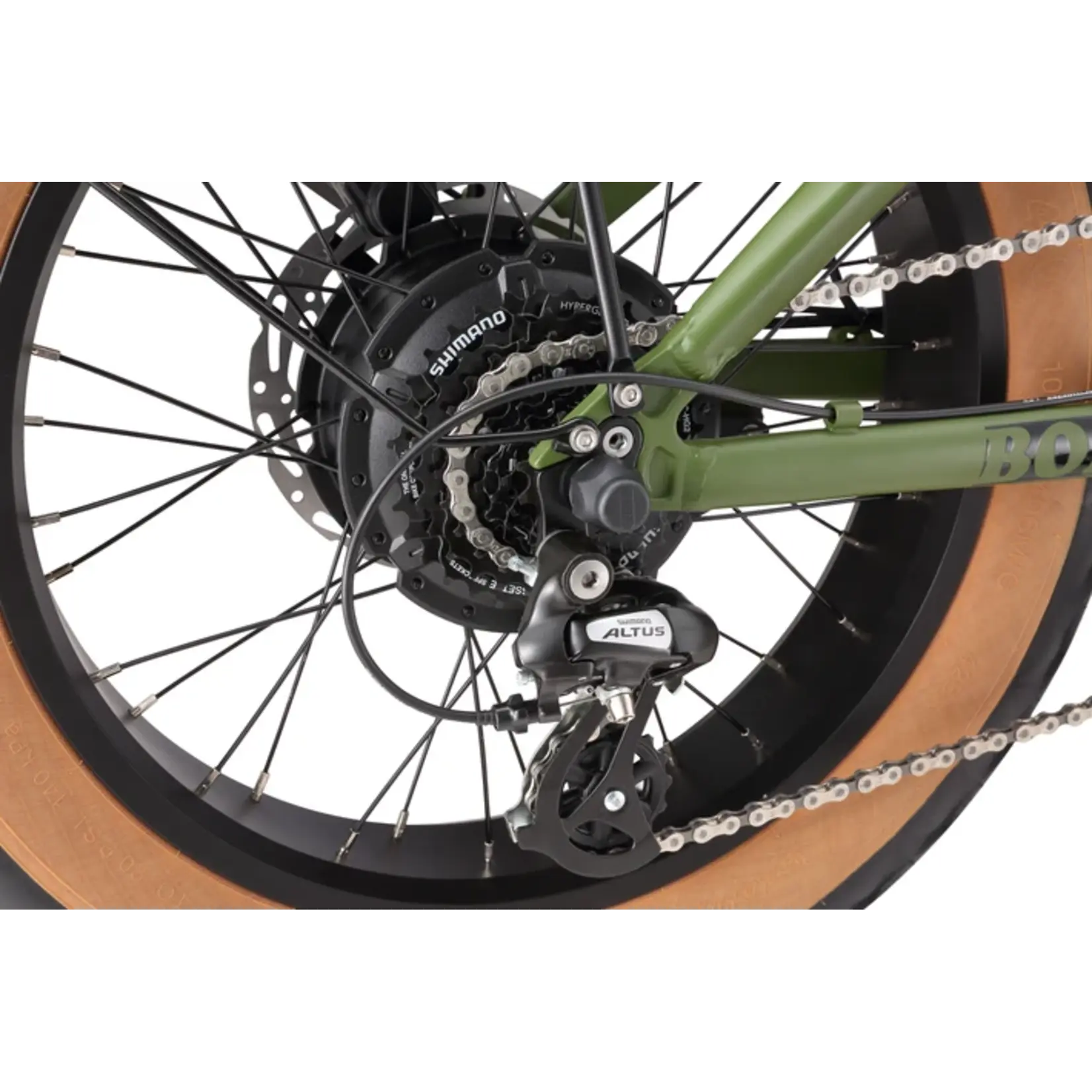

• REAR DERAILLEUR: SHIMANO Altus 8-speed
• CASSETTE: SHIMANO 8-speed 12-32T

Components

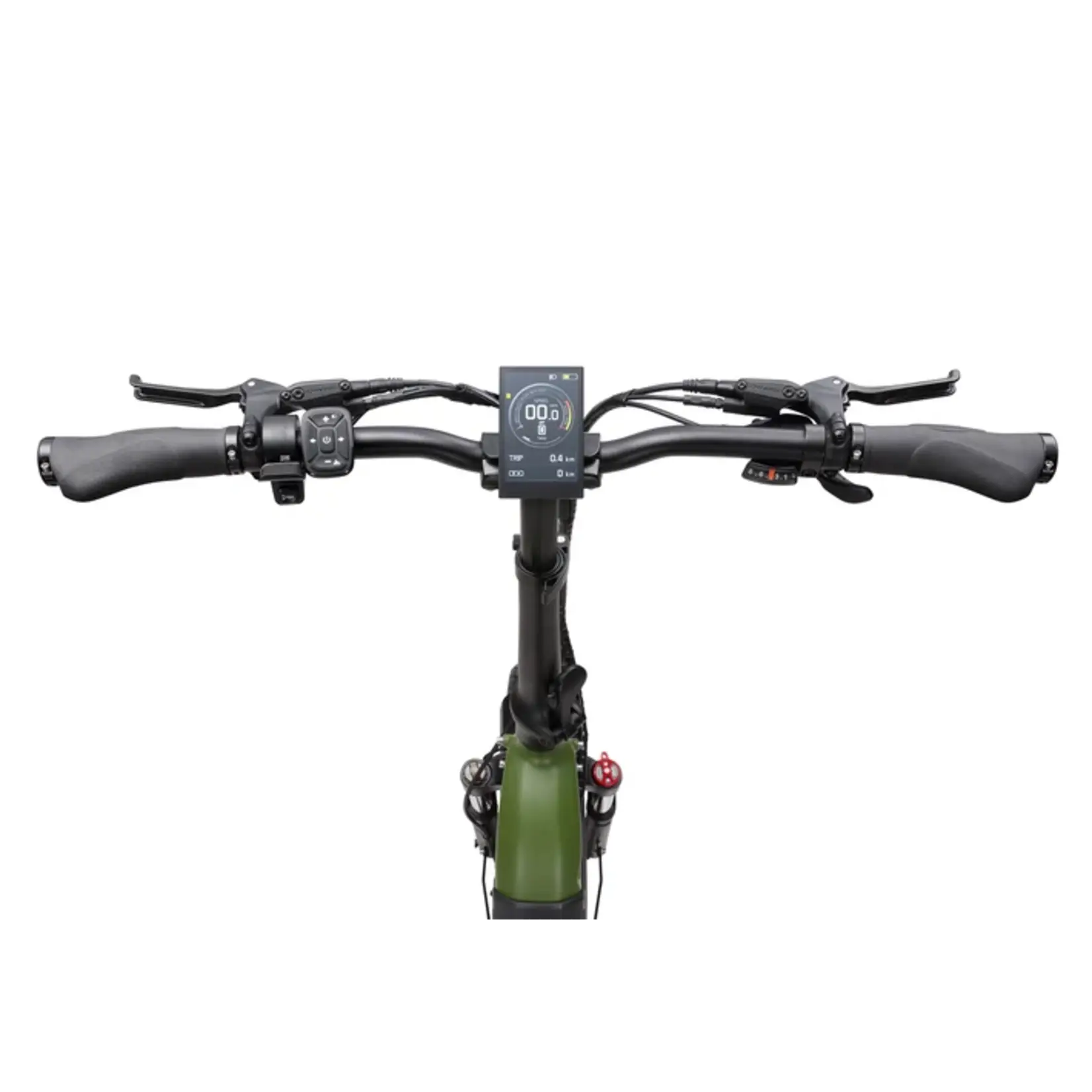

• HANDLEBAR: Alloy bird type bar
• GRIPS: Non-slip, shock-absorbing with Alloy ring
• STEM: Alloy stem

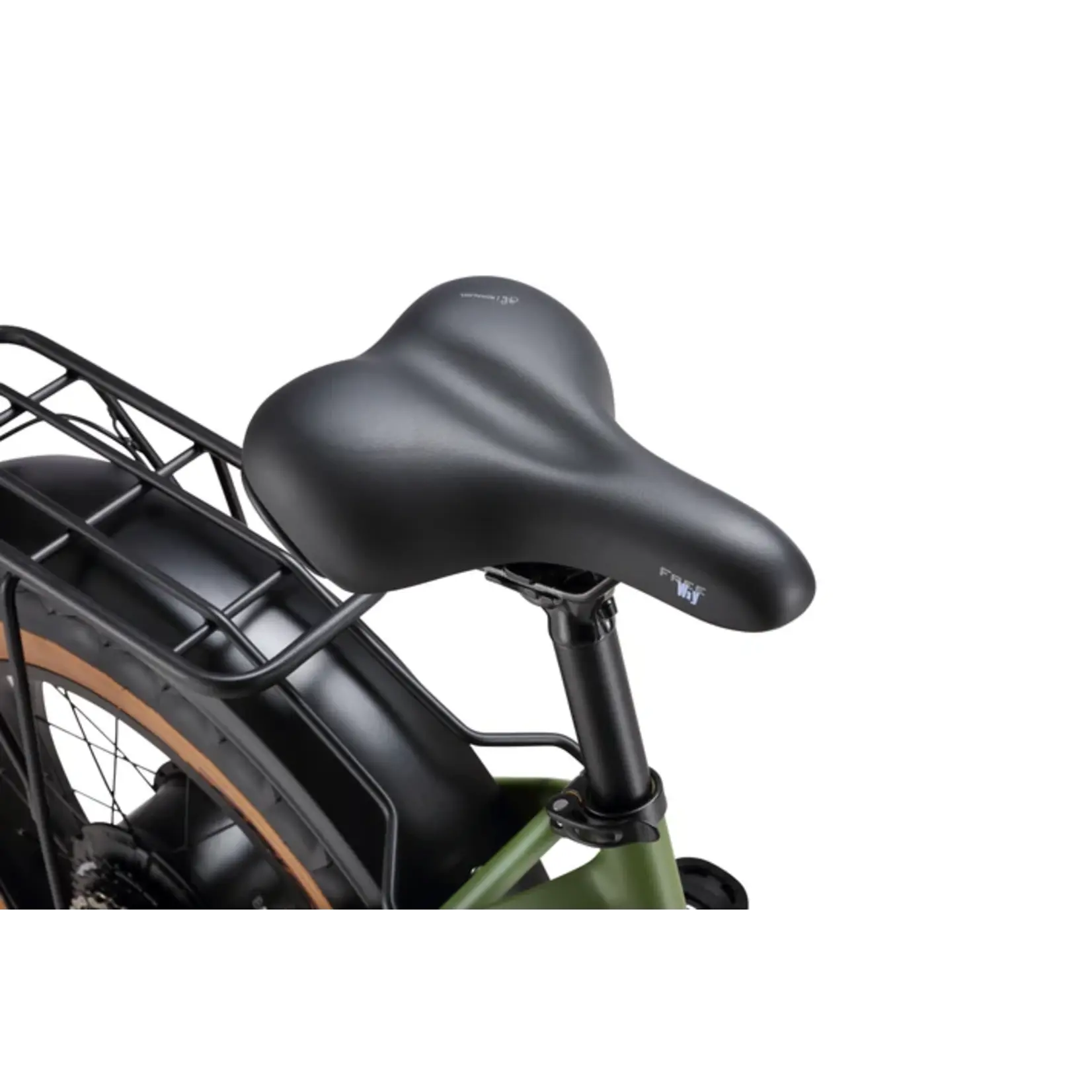

• SEATPOST: Alloy 27.2mm with quick release (350mm)
• BRAKE: TEKTRO, HD-E3520, hydraulic disc brake
• ROTORS: 160mm

Wheels

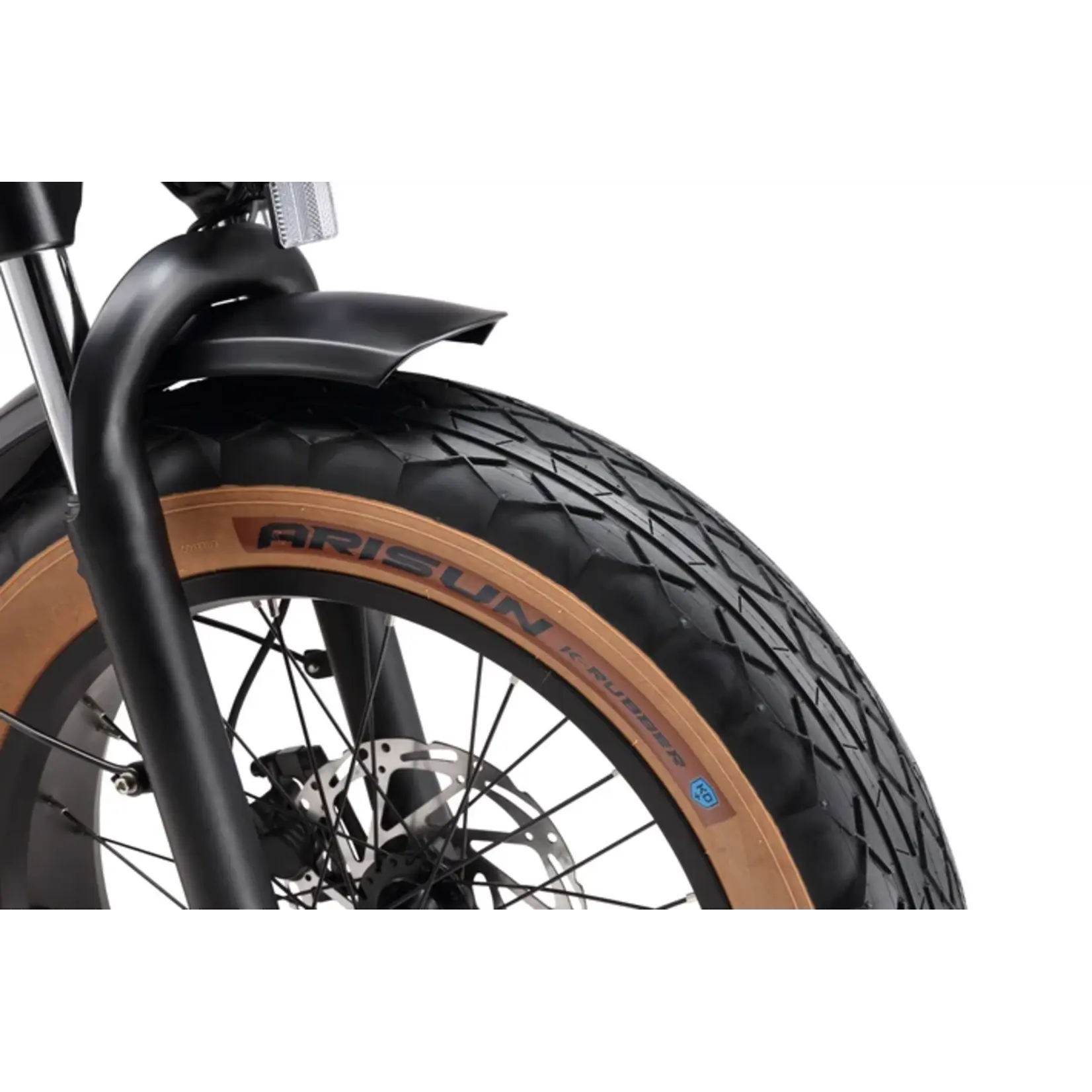

• TIRES: CST 20" x 4"
• RIMS: Alloy 20"

Electric Technology

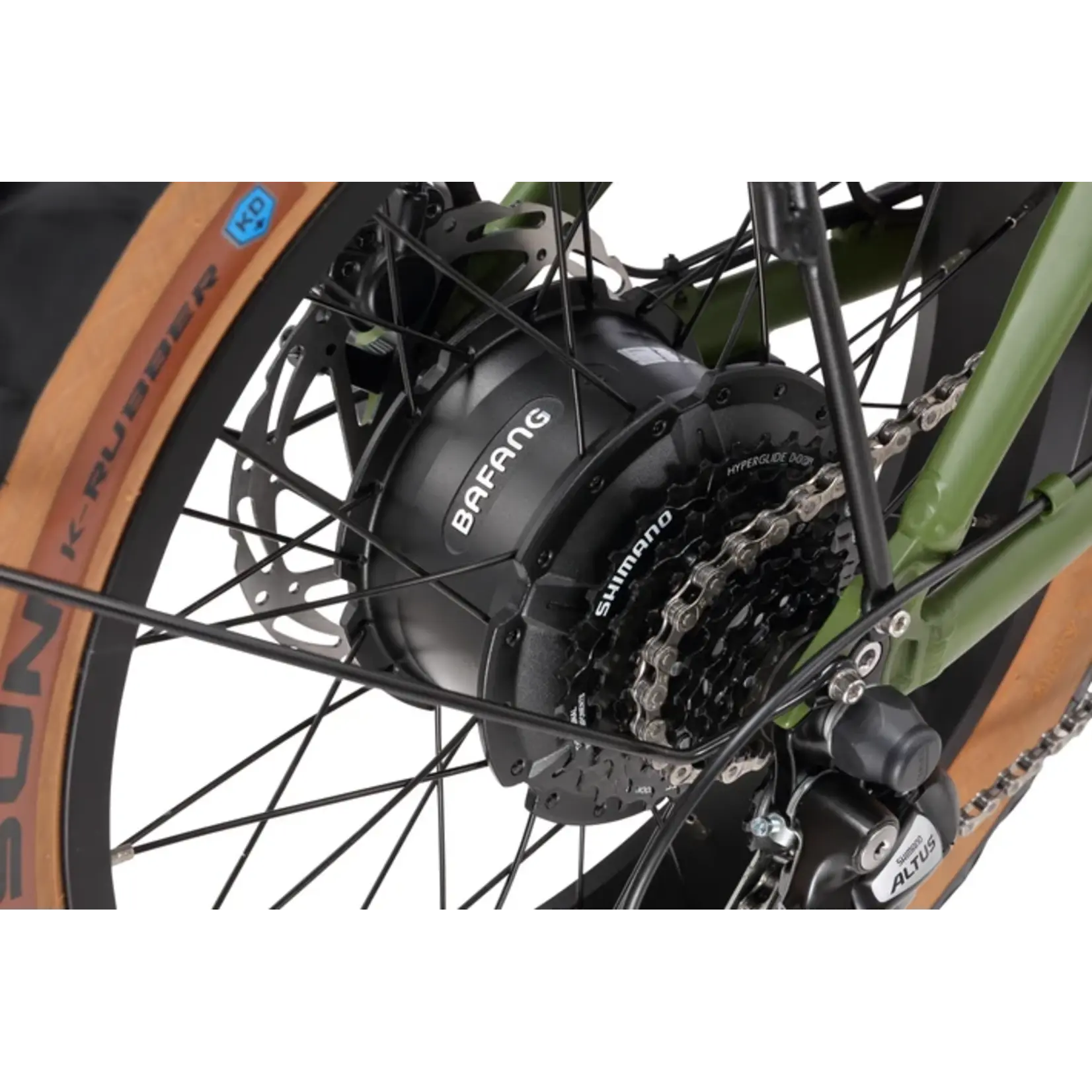

• MOTOR: BAFANG, RM G020.500.DC, 48V/500W
• CONTROLLER: 48V/500W/18A

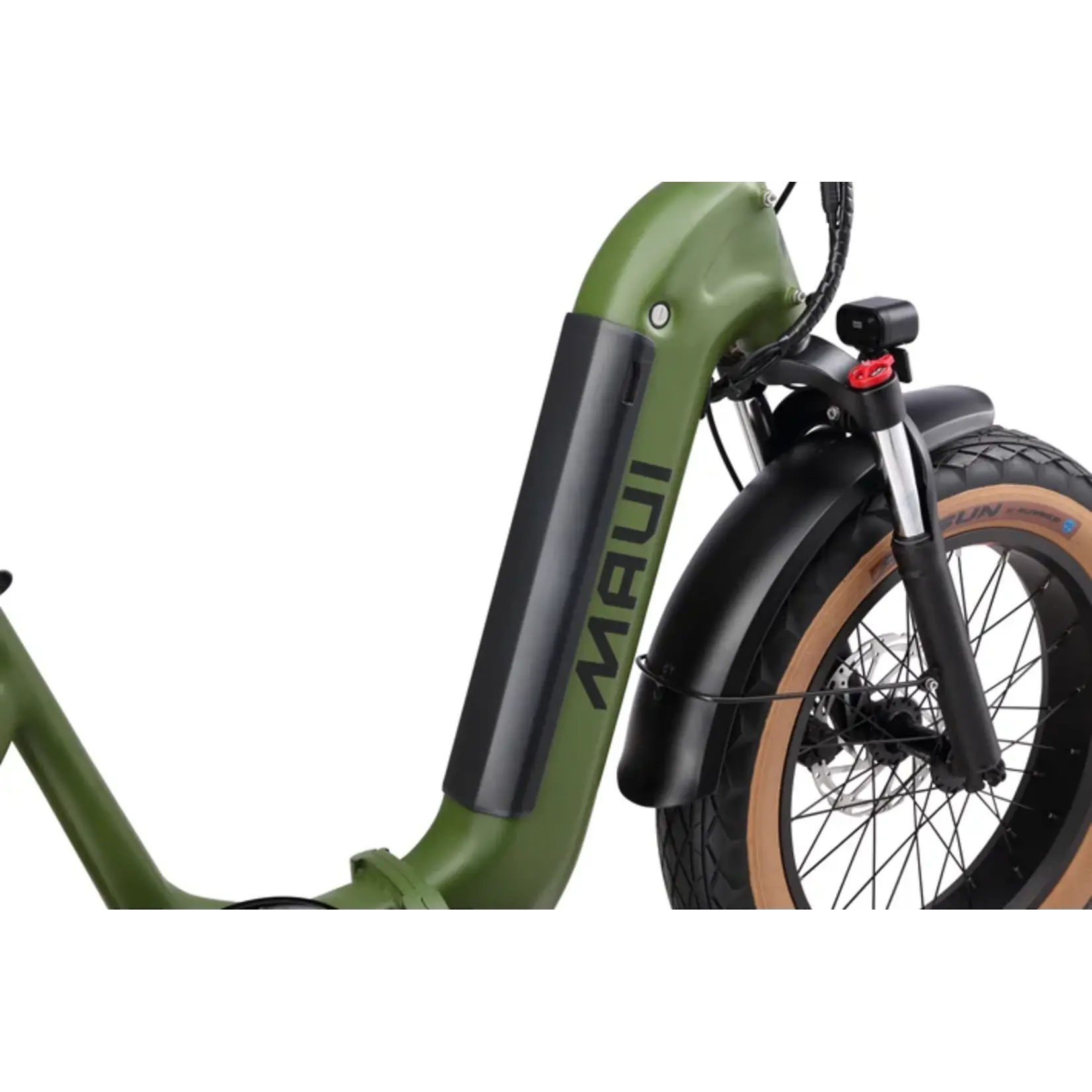

• BATTERY TYPE: SAMSUNG, 48V, 14AH, battery cell, removable with security lock
• BATTERY CAPACITY: 5000 mAh
• RANGE: Up to 80 miles subject to ambient temperature, rider weight and ride style
• POWER ASSIST: 5 Levels of power assisted pedaling
• THROTTLE: KAHUA, EA10 thumb throttle 36V
• BATTERY CHARGER: 48V Smart charger, LED status, with CE certificate

Accessories (included)

• Display

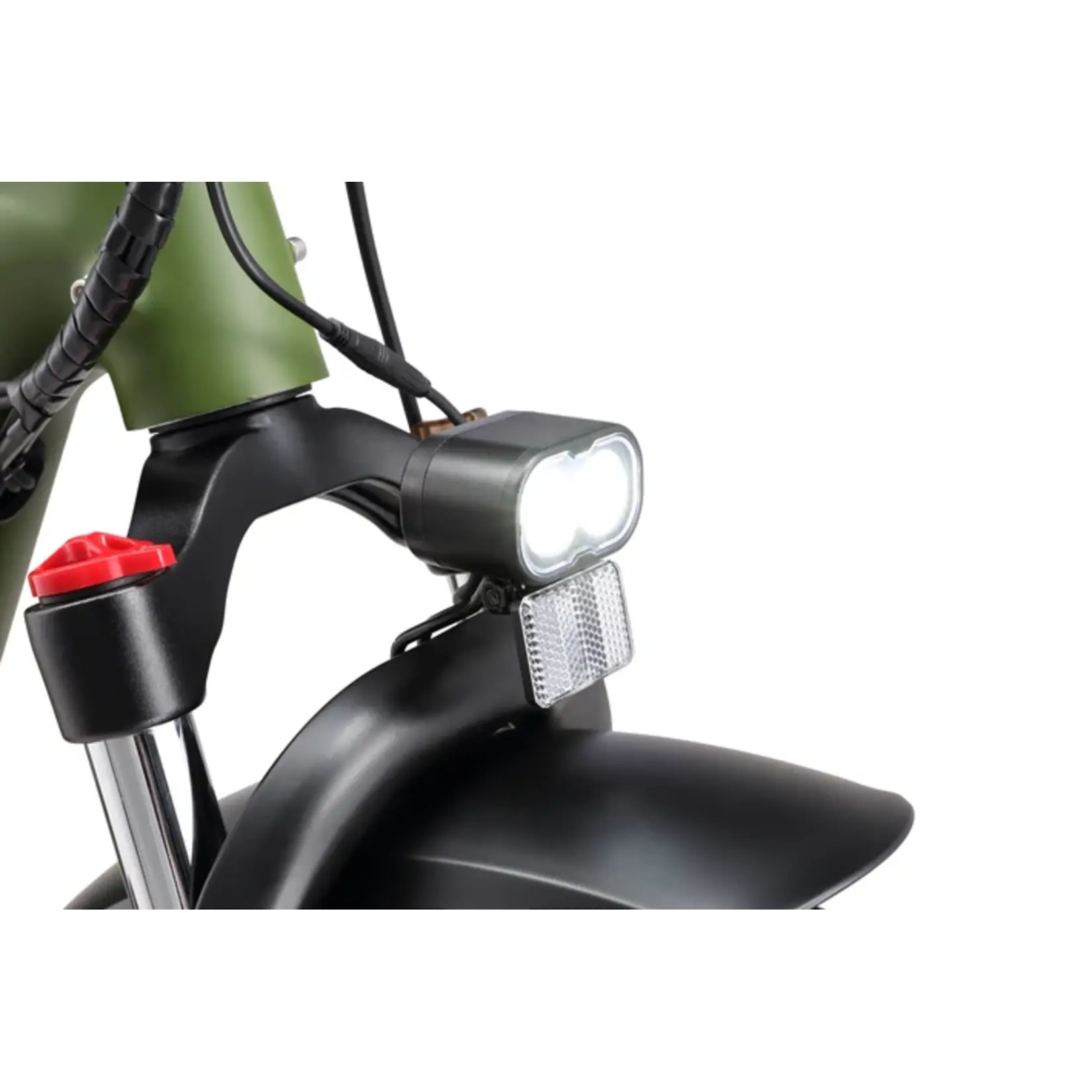

• Front & Rear LED Lights
• Front & Rear Fenders

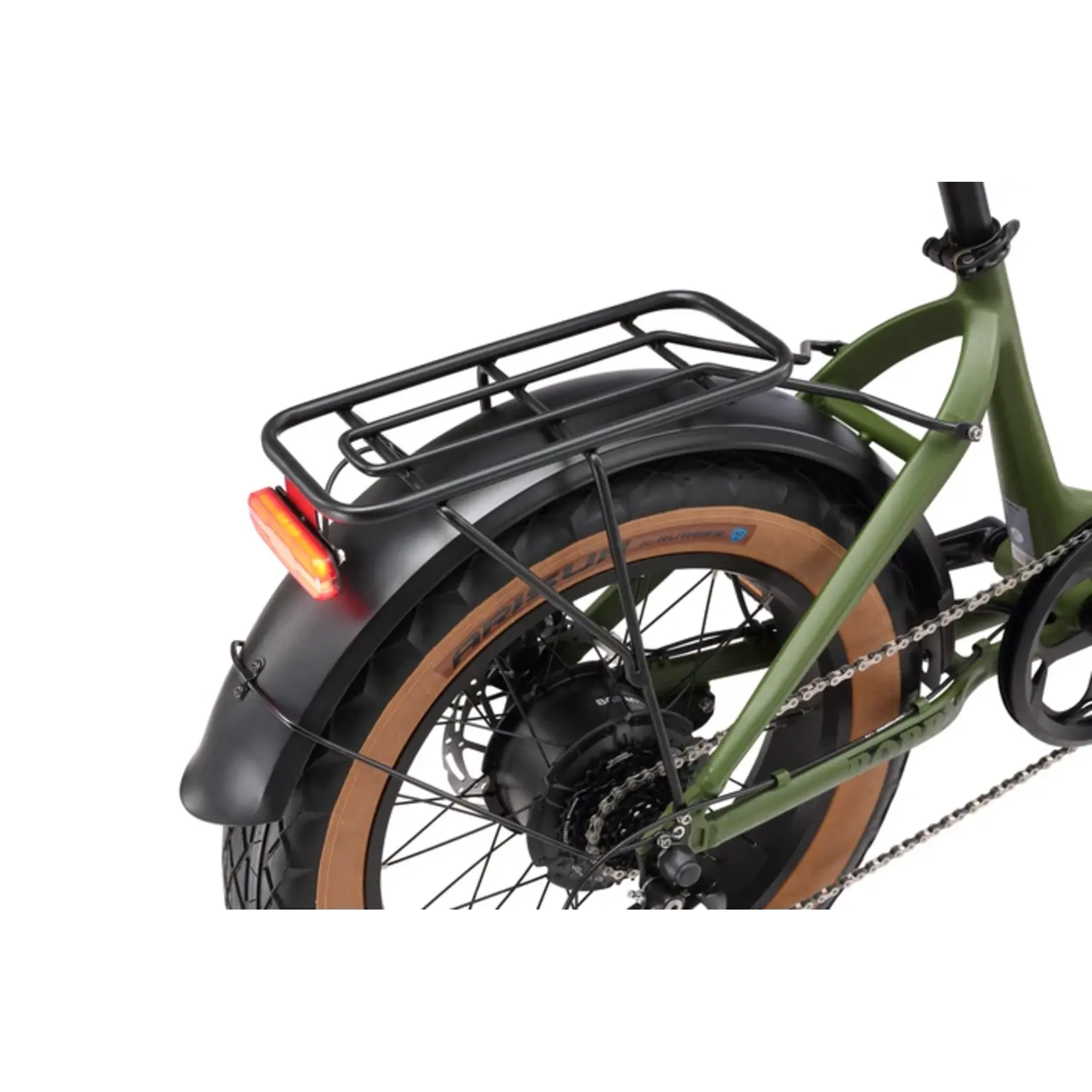

• Rear Integrated Cargo Rack
• Kickstand
• Pedals
