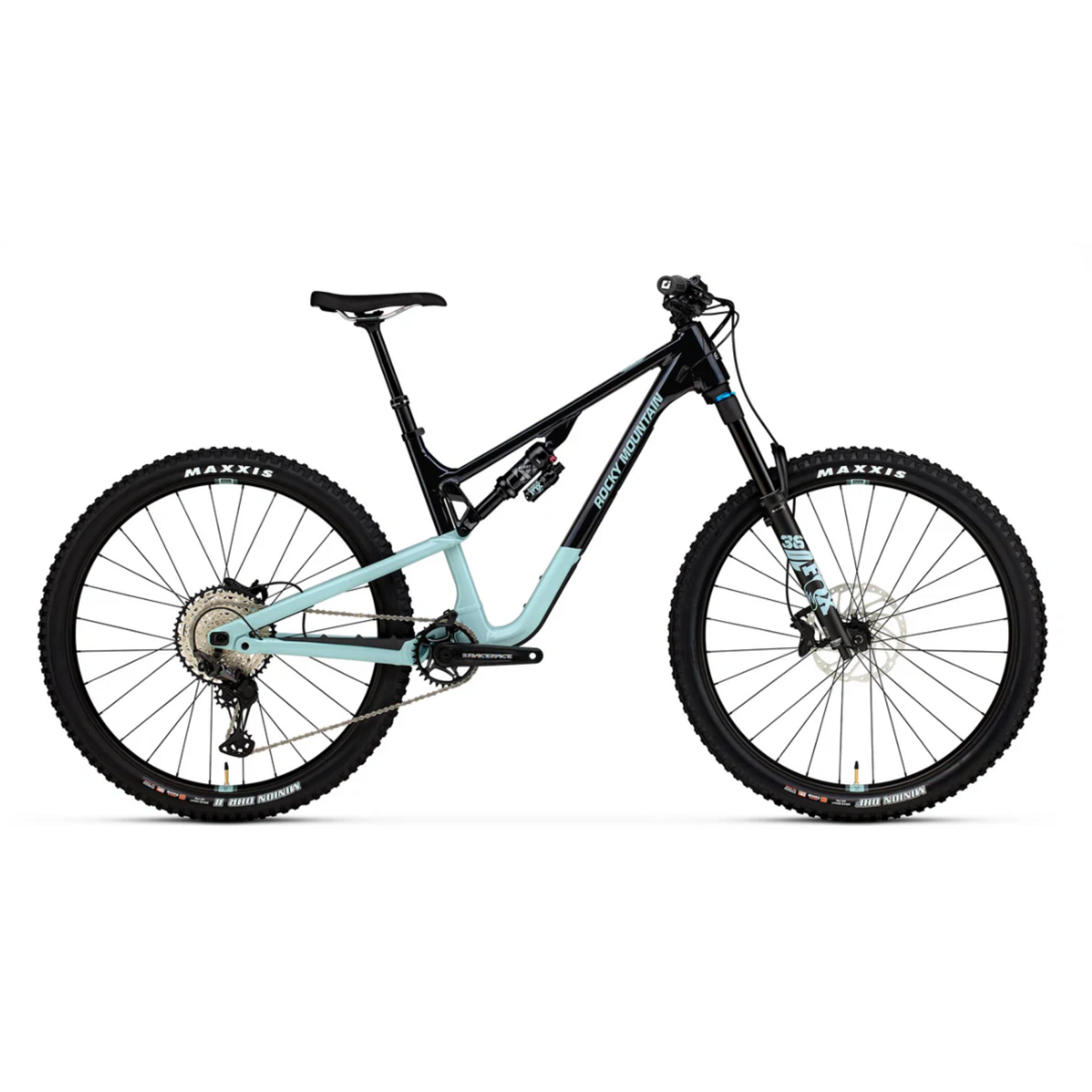

PRODUCT OVERVIEW
In search of a quiver-killer? we’ve got you covered with the Instinct Alloy. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the Instinct Alloy frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
SPECIFICATIONS
-
Frame: FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | SM - XL = 145mm | XS = 140mm | FORM™ Alloy Rear Triangle
-
Fork: RockShox Lyrik Select 160mm | Charger RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset
-
-
Shock: RockShox Super Deluxe Select | Linear XL Air Can | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x55mm | Size-Specific tune in FAQ
-
-
Headset: FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
-
Stem: Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm
-
Handlebar: Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
-
Grips: ODI Elite Pro Lock On
-
Brakes: Shimano XT Trail 4 Piston | Metal Pads
-
-
Rear Derailleur: Shimano XT
-
Cranks & Chainring: Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm
-
Bottom Bracket: Shimano SM-BBMT500
-
Cassette: Shimano XT 10-51T
-
-
Front Hub: Shimano TC500 | 15mm Boost
-
Rear Hub: Shimano TC500 Boost 148mm
-
-
Rims: WTB KOM Team i30 TCS 2.0 | 28H
-
Tires: F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
-
Seatpost: Tranz X +RAD1.0 Adjustable Dropper Post | 30mm Adjustment | Alloy Clamp Lever | 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm
-
Saddle: WTB Volt Race 142 | Cromoly rails
