PRODUCT OVERVIEW

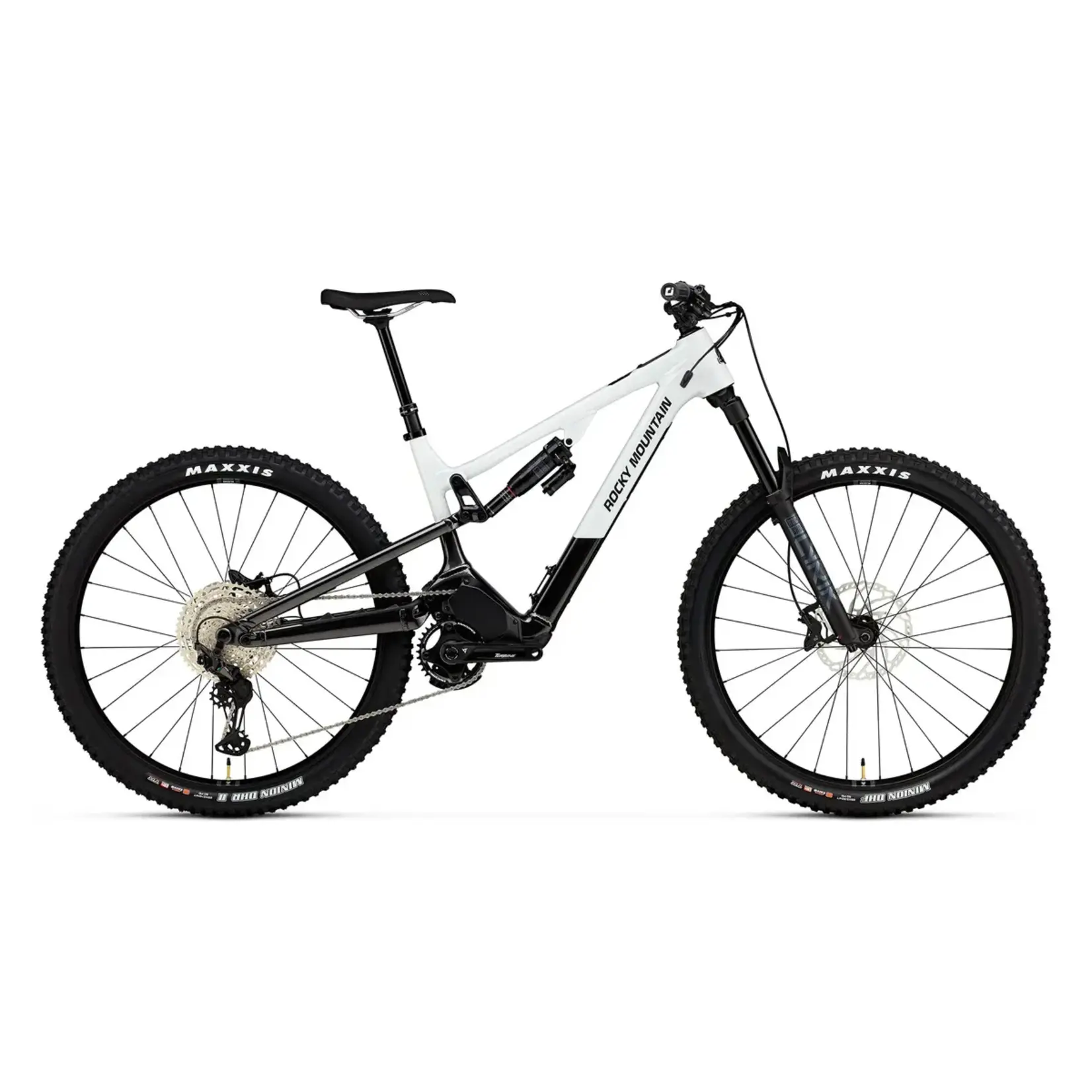

The Instinct Powerplay SL Alloy is a lightweight marvel that packs a punch. With the new Dyname S4 Lite drive system, this bike rides like a trail bike while giving you the power to explore further. Thanks to its adjustable geometry, refined suspension kinematics, and MX compatibility, the Alloy Instinct Powerplay SL offers bold levels of playfulness and agility, lap after lap... after lap.
SPECIFICATIONS
-
Frame: FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | FORM™ Alloy Rear Triangle
-
Fork: RockShox Lyrik Select 150mm | Charger RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset
-
-
Shock: SM-XL: RockShox Deluxe Select+ | 230x57.5mm | XS: RockShox Deluxe Select+ | 210x52.5mm | Sealed Bearing Eyelet | 25x8mm F Hardware | Size-Specific tune in FAQ
-
-
Headset: FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
-
Stem: Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm
-
Handlebar: Rocky Mountain AM | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
-
Grips: ODI Elite Pro Lock On
-
Brakes: Shimano MT6120 4 Piston | Metal Pads
-
-
Rear Derailleur: Shimano XT
-
Cranks & Chainring: Race Face Turbine Cinch | 34T Ring | 30mm Spindle | XS - XL = 165mm
-
Bottom Bracket: Race Face BB92 30mm
-
Cassette: Shimano Deore 10-51T 12spd
-
-
Front Hub: Novatec D791SB Sealed Boost 15mm
-
Rear Hub: Novatec MTB SL Pro Boost 148mm
-
Spokes: DT Swiss Competition 2.0/1.8/2.0
-
Rims: WTB KOM Trail i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl
-
Tires: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready | Tubeless Set Up | Sealant Incl
-
Seatpost: X Fusion Manic Composite 30.9mm |XS - SM = 125mm | MD = 150mm | LG = 170mm | XL = 200mm
-
Saddle: WTB Volt Race 142 | Cromoly rails
-
Drive System: Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 700w Max Power | 75Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
-
Battery: 480 Wh Removable Integrated Li-Ion
-
Display: Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
-
Charger: Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector
-
Weight: This information isn't available yet. We will update the weight of this model as soon as possible.
-
Notes: We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
