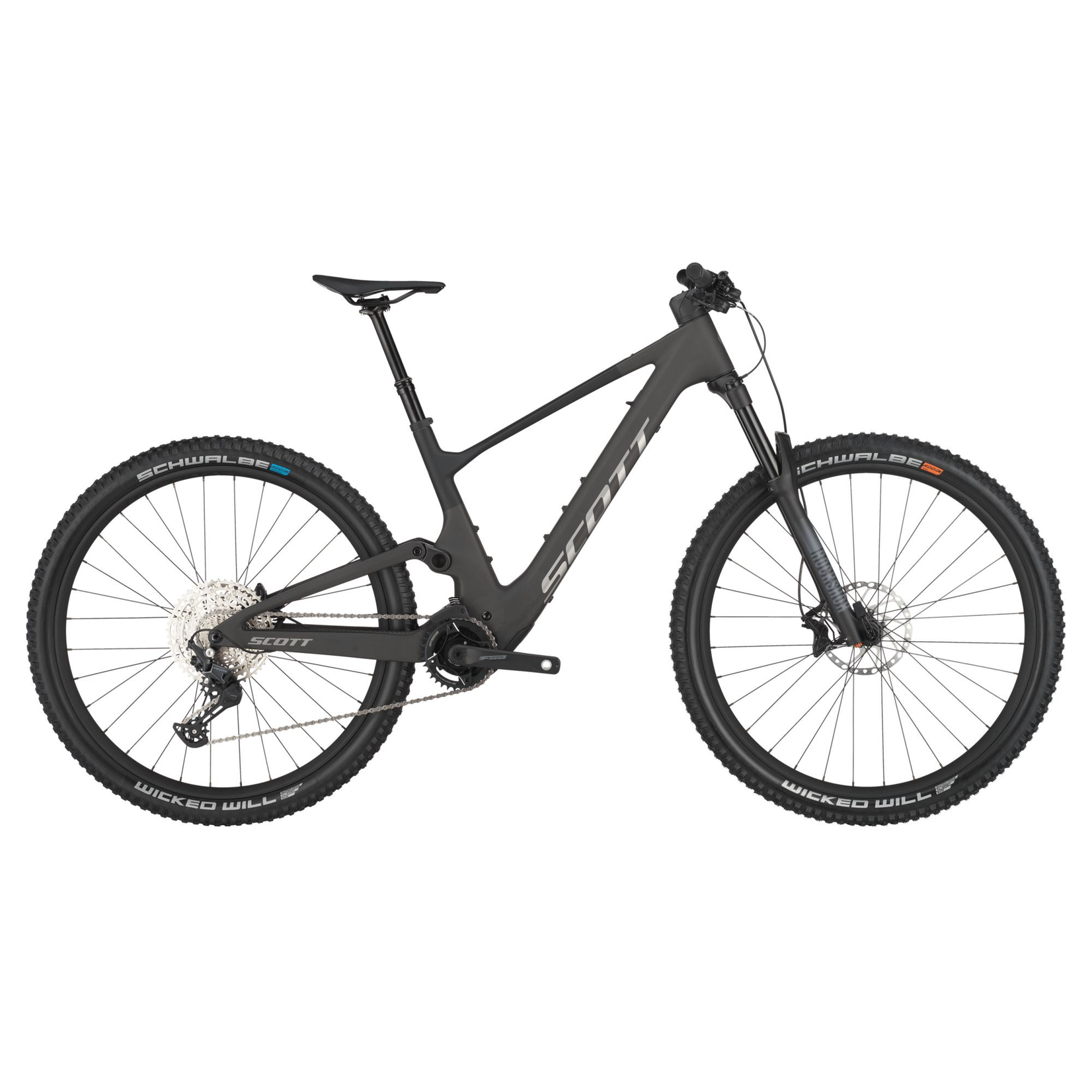

PRODUCT OVERVIEW
An eMTB with the weight of an MTB, starting at 15.5kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel paired with a 140mm fork, add silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino’s speed.
Features
- RockShox Recon Gold RL 140mm Fork
- X-Fusion Nude, TwinLoc, 130mm
- Shimano Deore 12 Speed
- Shimano 4 Piston Disc Brakes
- Syncros X-30S TR Rims
- Schwalbe Wicked Will Tires
- Syncros Dropper Post and Parts
SPECIFICATIONS
-
Frame
Carbon HMF Main Frame / Alloy SST-CST
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
-
Travel
Front: 140mm / Rear: 130mm
-
Fork
RockShox Recon Gold RL Solo Air
2-Modes / 15x110mm axle / tapered steerer
42mm offset / Reb. Adj. / Lockout / 140mm travel
-
Rear Shock
X-Fusion NUDE 5 RLX Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Reb. Adj.
Travel 130-90-Lockout / T165X45mm
-
Remote System
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes
-
E.Drive System
TQ HPR50
-
Drive Unit
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
-
Battery
TQ Internal 360Wh
-
Display
TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app
-
Charger
TQ 100-240V-4A
-
Rear Derailleur
Shimano Deore RD-M6100 SGS
Shadow Plus / 12 Speed
-
Shifters
Shimano Deore SL-M6100-IR / Rapidfire Plus
-
Crankset
FSA Alloy
-
Chainguide
e*thirteen / e*spec Slider
-
Chainring
SCOTT custom spider / FSA 12Speed 34T chainring
-
Chain
Shimano CN-M6100
-
Cassette
Shimano CS-M6100 / 10-51
-
Brakes
Shimano MT520 4 Piston Disc
-
Rotor
Front: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm
-
Handlebar
Syncros Fraser 2.0 DC Alloy 6061 D.B.
mini Rise / back sweep 8° / 760mm
Syncros Performance XC lock-on grips
-
H'stem
Syncros DC 2.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8"
-
Seatpost
Syncros Duncan Dropper Post 2.0
31.6mm / S & M size 125mm / L size 150mm / XL size 170mm
-
Seat
Syncros Tofino 2.0 Regular
CRMO rails
-
Headset
Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
-
Hub (Front)
Formula CL-811 / 15x110mm
-
Hub (Rear)
Formula CL-148M / 12x148mm
-
Spokes
Stainless Black 15G / 1.8mm
-
Rims
Syncros X-30S / 32H / 30mm
Tubeless ready
-
Front Tire
Schwalbe Wicked Will 29x2.4" EVO
Super Race / TLE / 67EPI / Addix Speed Soft
-
Rear Tire
Schwalbe Wicked Will 29x2.4" EVO
Super Race / TLE / 67EPI / Addix Speed Grip
