Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)

Off-Road Control

The new geometry is optimized for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain.

Light and Durable

The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.

SPECIFICATIONS

• Sizes
  27.5": XS, S, 29": S, M, L
• Colours
  Asphalt Green

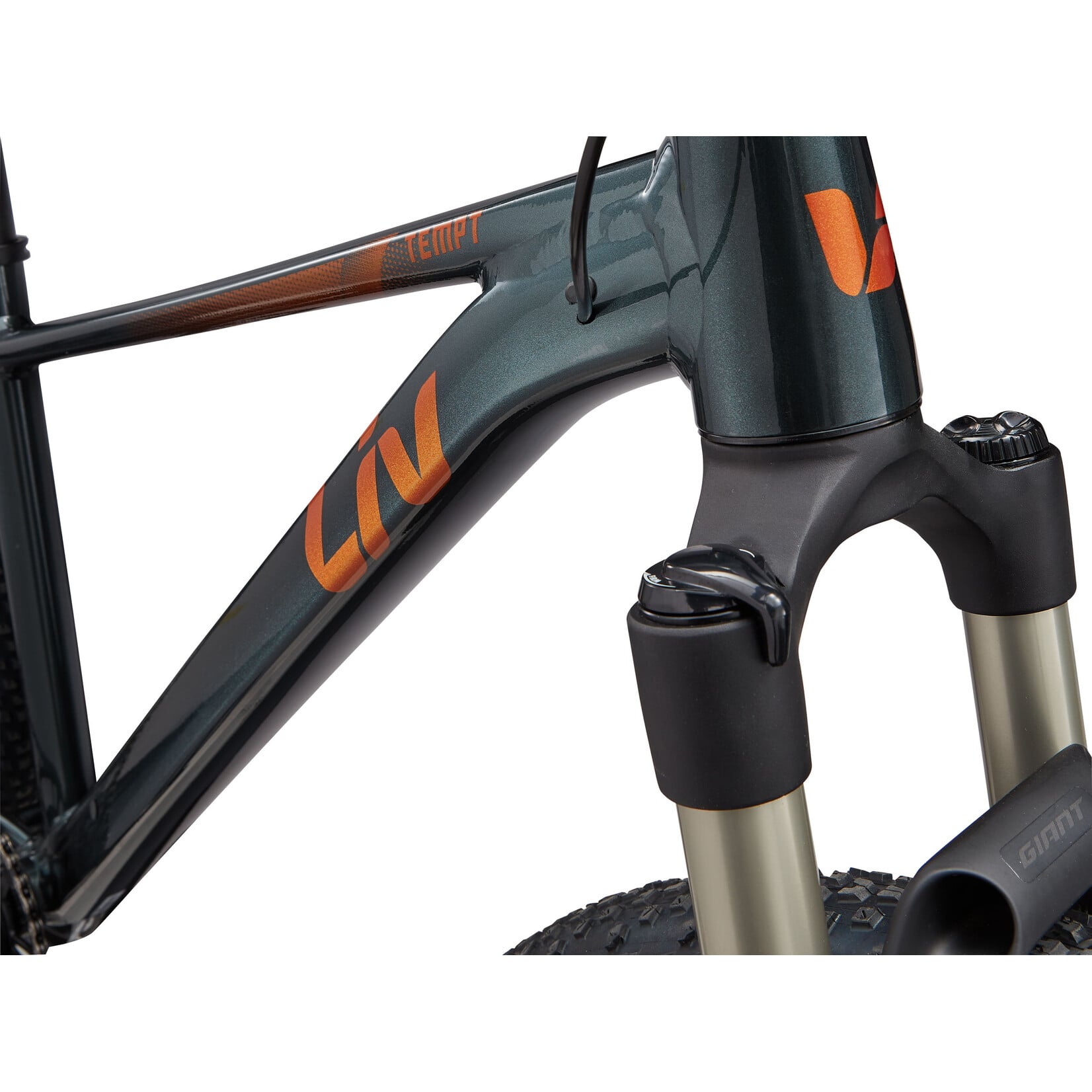

• Frame
  ALUXX-grade aluminum, disc
• Fork
  Giant SXC32-2 RCL Alloy SingleAir 29"/27.5" 15x110 TA 1.5" Taper steerer 27.5" XS: 80mm, S: 80mm 29" S: 100mm, M: 100mm, L: 100mm
• Shock
  N/A

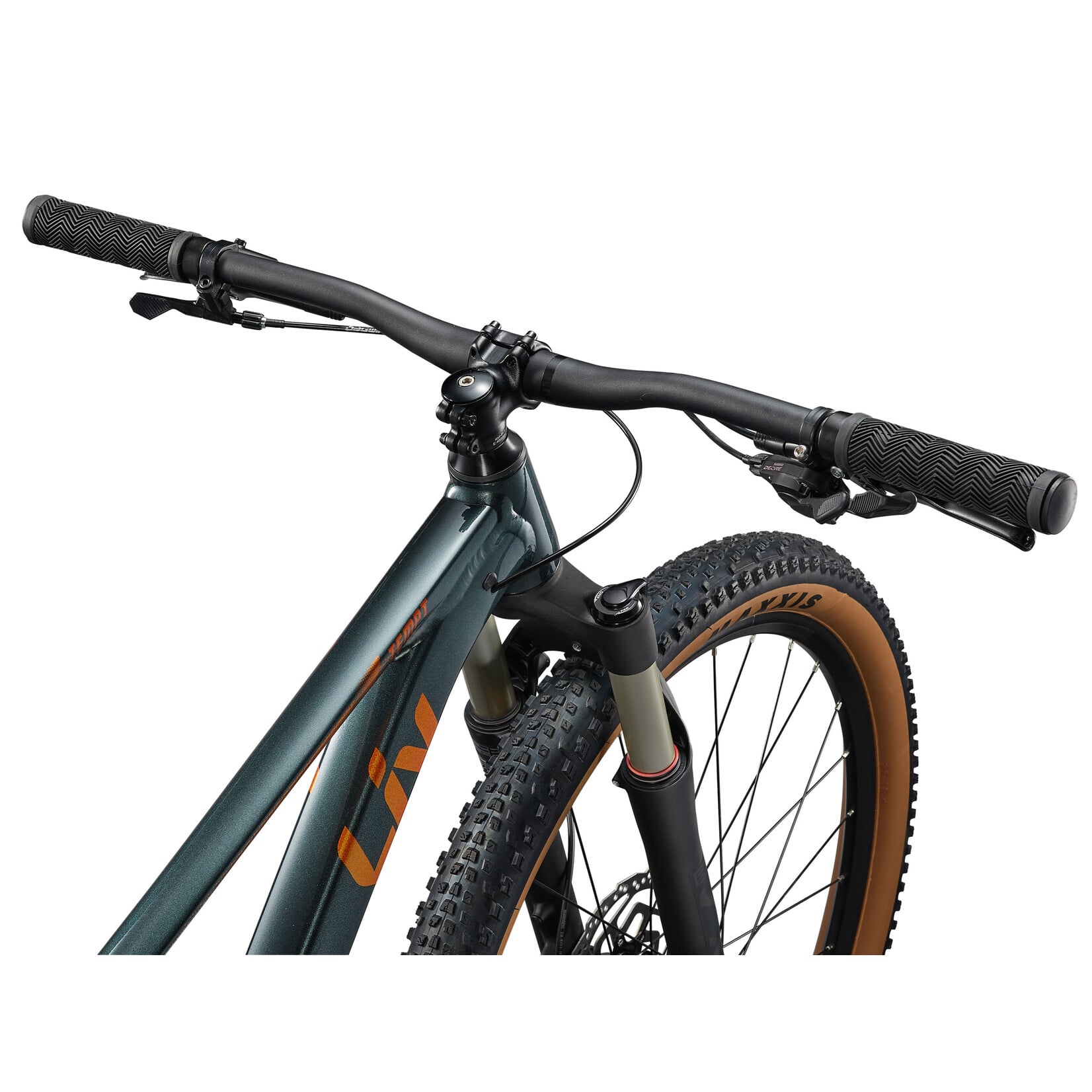

• Handlebar
  Giant Connect Trail, 31.8mm 27.5" XS: 690mm, S: 690mm 29" S: 750mm, M: 750mm, L: 750mm
• Grips
  Giant Sole-O
• Stem
  Giant Sport, 7-degree 27.5" XS: 40mm, S: 40mm 29" S: 40mm, M: 50mm, L: 50
• Seatpost
  Giant Contact Swith Core, 30.9mm27.5"XS:100x350mm, S: 100x350mm29"S: 100x350mm, M:100x400mm, L : 100x400mm
• Saddle
  Contact Ergo
• Pedals
  MTB caged
• Shifters
  Shimano Deore M6100, 1x12
• Front Derailleur
  N/A

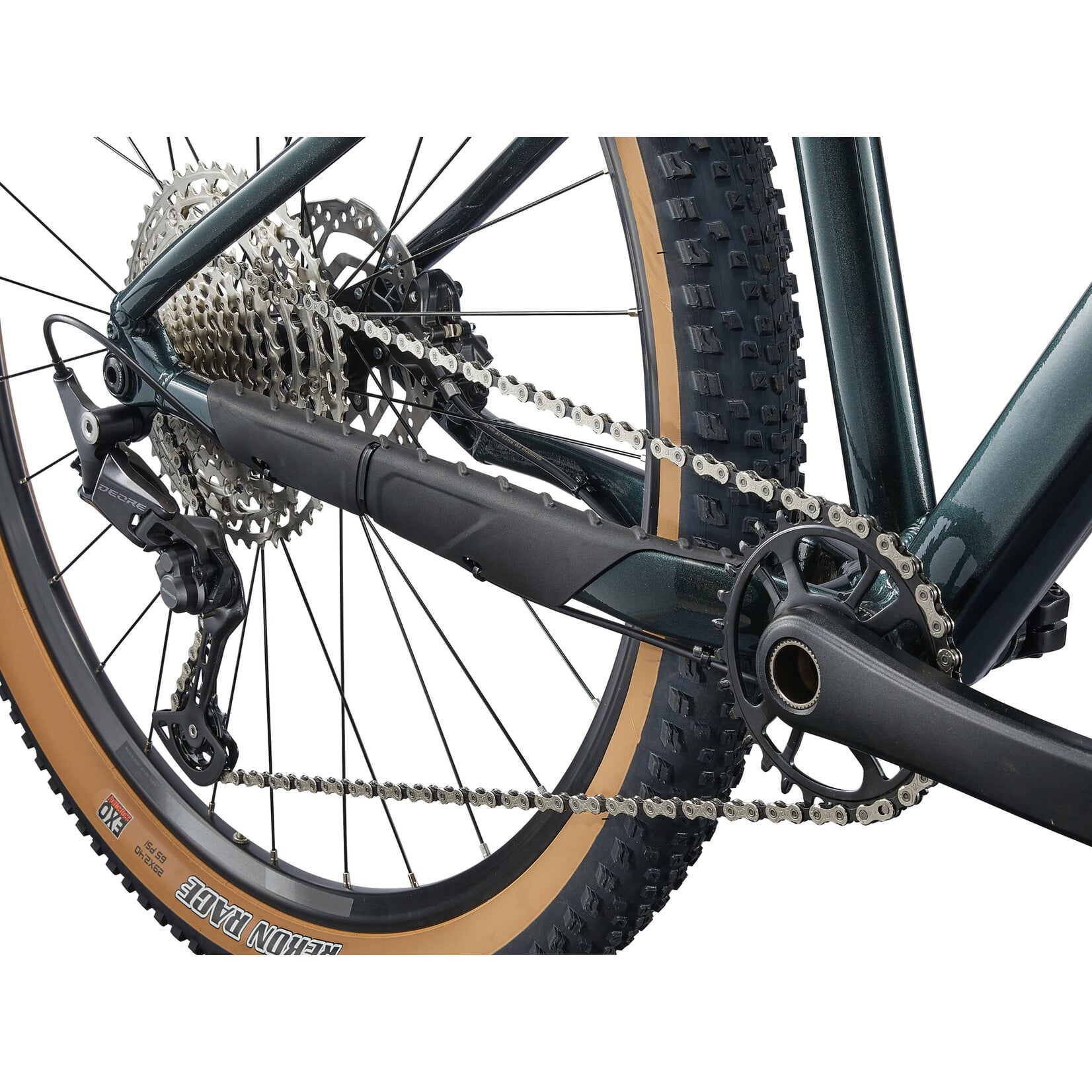

• Rear Derailleur
  Shimano Deore M6100, Shadow +
• Brakes
  Shimano BR-MT200, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm
• Brake Levers
  Shimano Deore BL-MT200
• Cassette
  Shimano Deore M6100, 10x51
• Chain
  KMC X12
• Crankset
  ProWheel MPX, 32t (27.5") or 30t (29") 27.5" XS: 165mm, S: 165mm 29" S: 170mm, M: 170mm, L: 170mm
• Bottom Bracket
  power spline
• Rims
  27.5": Giant GX03V 27.5", alloy, double wall, 21mm inner width 29": Giant GX03V 29", alloy, double wall, 21mm inner width
• Hubs
  Shimano, sealed bearing
• Spokes
  stainless, 14g
• Tires
  Maxxis Recon Race 27.5x2.4" or 29x2.4", 60tpi wire bead
• Extras
  2.4" max tire size, max chainring 32T
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
