PRODUCT OVERVIEW

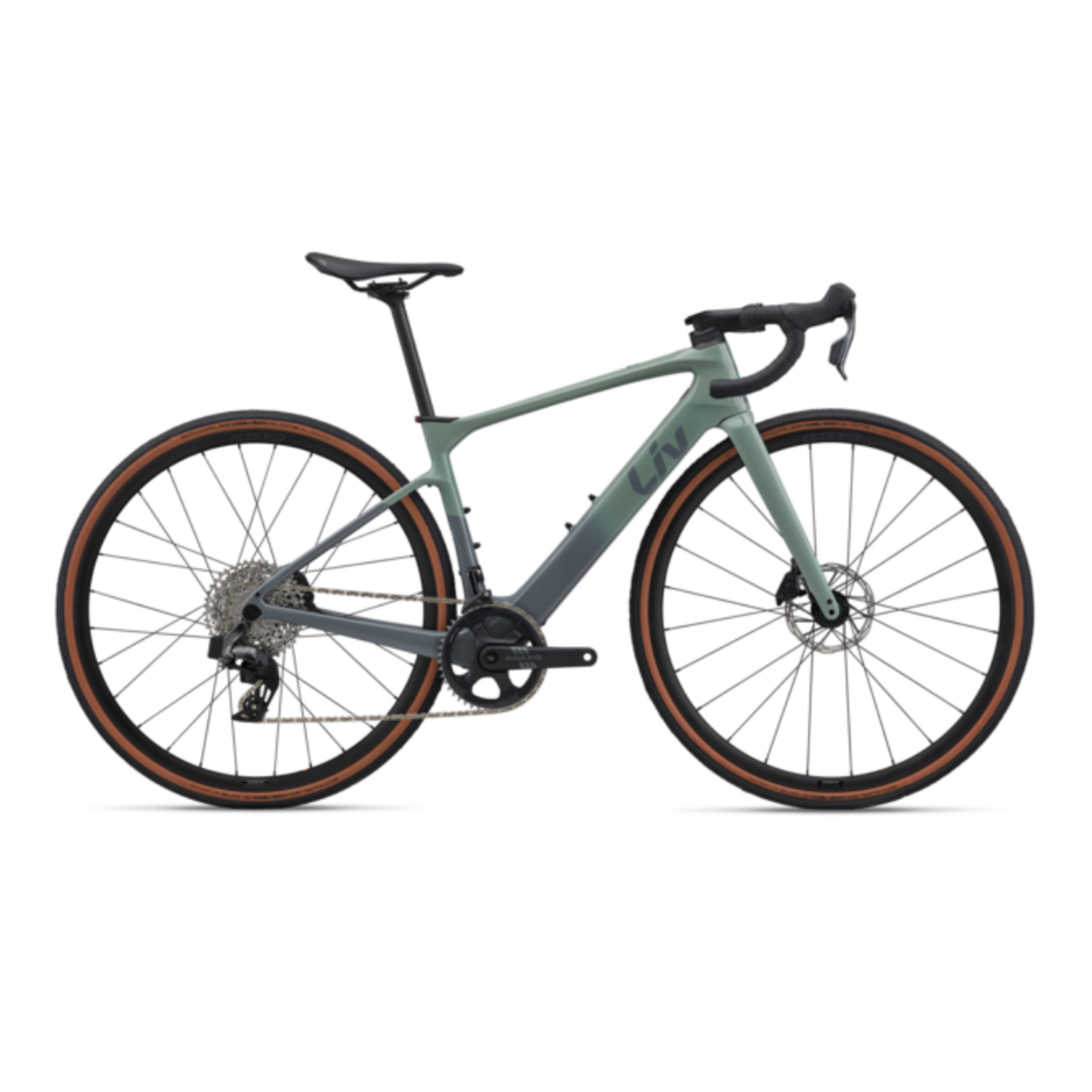

The design of the Avail Advanced E+ Elite AR stealthily conceals its potent electric capabilities. A compact rear hub motor, lightweight carbon frame and fork, hidden controls, and internal cable routing is the epitome of a beautiful, high-end road bike that looks fast—even when it’s not moving. **NOT AVAILABLE TO SHIP. LOCAL PICK UP ONLY**
Features
- A Natural Ride - It looks like an analog road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.
- Maximum Miles. Minimum Fatigue. - The Avail Advanced E+ Elite AR provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.
- Delivering Power & Speed - The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30 Nm, which is comparable to 75 Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 45 km/h / 28 mph (US), 32 km/h (Canada), and 25 km/h (in other regions worldwide).
SPECIFICATIONS
- Frame: Advanced-grade composite,12x145 thru-axle
- Fork: Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
- Rims: Giant P-R2 Alloy Disc Wheel System, Tubeless Ready, 22mm inner width, 12mm thru-axle, w/ Sapim spoke E-Light [R] Race [F], e-bike optimized
- Tires: Schwalbe G-one Allround Performance, RaceGuard, Brown side-wall, tubeless, 700x35
- Bottom Bracket: Giant E+ System BBSS
- Crankset: SRAM X-SYNC 46T BCD107 chain ring Praxis E crank Alloy ISIS
- Shifters: SRAM Rival AXS
- Rear Derailleur: SRAM Rival XPLR AXS
- Cassette/Freewheel: SRAM XPLR XG-1251 10x44T 12-speed
- Chain: SRAM Rival 12-speed
- Brakes: SRAM Rival AXS HRD, Paceline 160mm 6-bols [F/R]
- Brake Levers: SRAM Rival AXS HRD
- Handlebars: Liv Contact SL D-Fuse 31.8 alloy
- Stem: Contact SL Aerolight 31.8 alloy
- Seatpot: Giant D-Fuse, Composite, 14mm offset
- Saddle: Liv Approach
- Pedals: Sold Separately
- Motor: SyncDrive Move Plus, Hub drive 75Nm max
- Battery: Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
- Controller/Display: Mode support switch from SRAM Blips / Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
- Charger: Giant EnergyPak smart charger 4A
