PRODUCT OVERVIEW

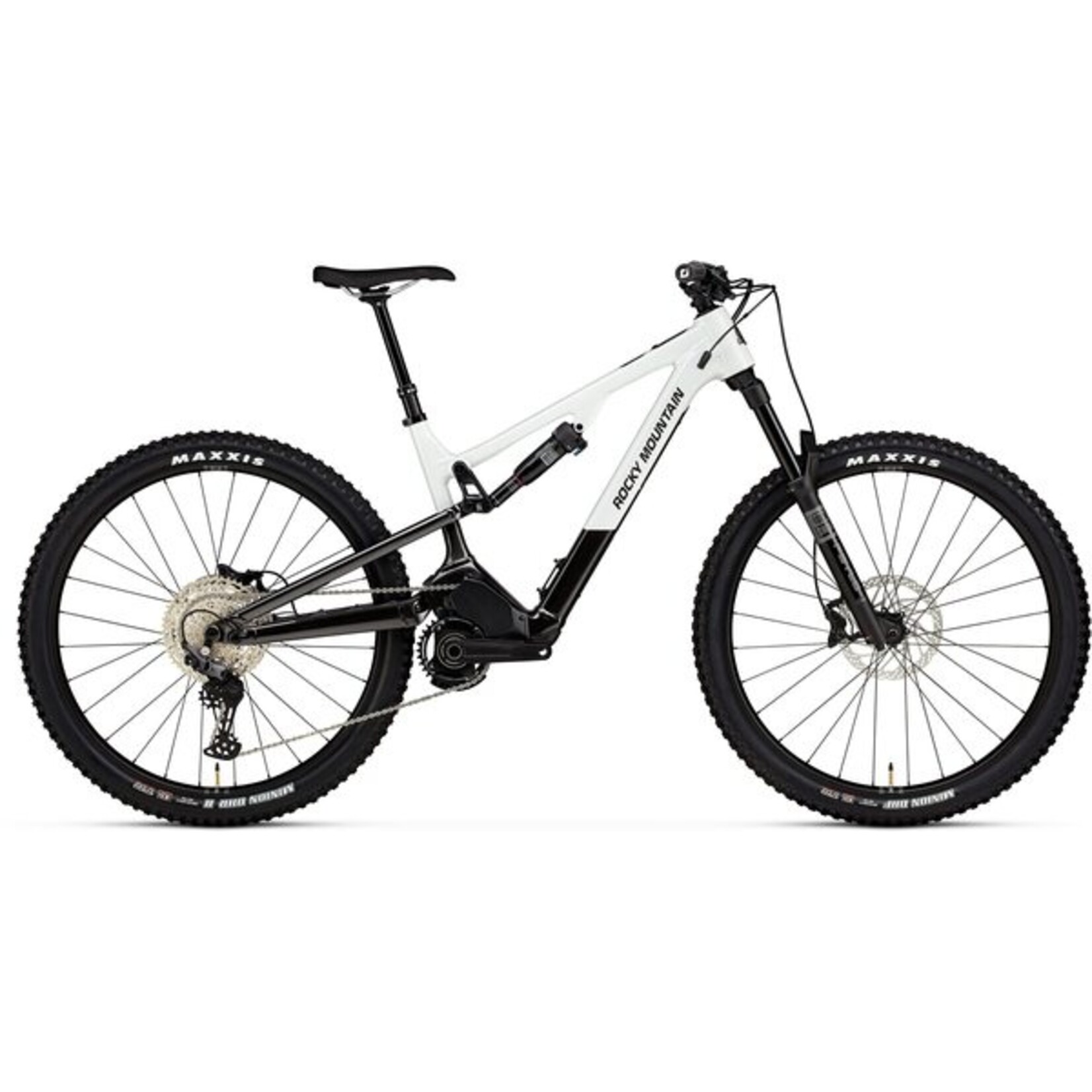

The Instinct Powerplay SL Alloy is a lightweight marvel that packs a punch. With the new Dyname S4 Lite drive system, this bike rides like a trail bike while giving you the power to explore further. Thanks to its adjustable geometry, refined suspension kinematics, and MX compatibility, the Alloy Instinct Powerplay SL offers bold levels of playfulness and agility, lap after lap... after lap.
SPECIFICATIONS
-
Frame: FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | FORM™ Alloy Rear Triangle
-
Fork: RockShox Psylo Gold RC 160mm | 27.5 = 37mm Offset | 29 = 42mm Offset
-
-
Shock: RockShox Deluxe Select | Linear XL Air Can | Sealed Bearing Eyelet | 25x8mm F Hardware | XS: 210x55mm | SM-XL: 230x60mm | Size-Specific tune in FAQ
-
-
Headset: FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
-
Stem: Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm
-
Handlebar: Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
-
Grips: Rocky Mountain Lock On Ergo
-
Brakes: Tektro HD-M535 | Shimano Pad Compatible
-
Shifters: Shimano Deore 12spd
-
Rear Derailleur: Shimano Deore 12spd
-
Cranks & Chainring: Rocky Mountain Microdrive 2PC | Race Face 34T SHI 12 Ring | 24mm Spindle | Crank Length: 165mm
-
Bottom Bracket: Rocky Mountain Sealed - Shimano Compatible
-
Cassette: Shimano Deore 10-51T 12spd
-
-
Front Hub: Shimano TC500 | 15mm Boost
-
Rear Hub: Shimano TC500 Boost 148mm
-
Spokes: DT Swiss Champion 2.0
-
Rims: WTB ST i30 TCS 2.0 | 28H
-
Tires: F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
-
Seatpost: Tranz X +RAD1.0 Adjustable Dropper Post | 30mm Adjustment | Alloy Clamp Lever | 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm
-
Saddle: WTB Volt 142 | Steel Rails
-
Drive System: Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 700w Max Power | 75Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
-
Battery: 480 Wh Removable Integrated Li-Ion
-
-
Display: Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
-
Charger: Rocky Mountain Powerplay Charger | 2A | 48V | Higo Deep Socket Connector
